Submitted

A expenses chart componenet with soft pastel colors

#tailwind-css#bem
Aadvik 1,250

@Aadv1k

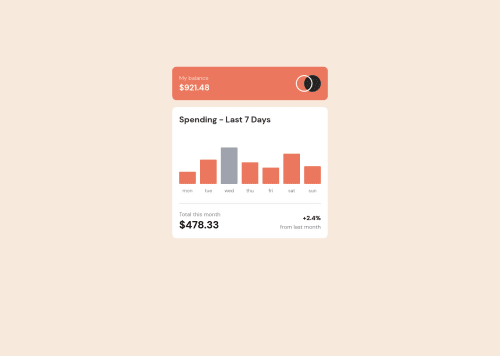

Desktop design screenshot for the Expenses chart component coding challenge

This is a solution for...

  • HTML
  • CSS
  • JS
2junior
View challenge

Design comparison


SolutionDesign

Solution retrospective


I feel like the tooltip could be improved upon, its just that with my implementation (tailwind-in-html-in-js) leaves not a whole lot of flexibility, any input is appreciated

Community feedback

@remyboire

Posted

Hi @Aadv1k, as you request it, here is my feedback. Your integration looks nice and everything is working properly, great job! However, as an old art director, I would be worried by some little differences between the design and your integration: colors not always match (the current day bar is more of a blue and the section background is a cream), border radius are 20px on desktop and 10px on mobile (and for the bars, its 5px / 3px). There are also some breakpoints on padding, bar spacing, logo width… I also noticed that you used width: 14% on bars, which in my opinion not the best way because it assumes that we have 7 bars. This can become a problem in the future if you want to display more or less bars! Personally, I used width:100%, that way you can add or remove bars without breaking the layout. Regarding the tooltips, I think using :before and :hover would have been an easier way to handle it than with event listeners. You can put a data-attribute on the bar and access it from a pseudo-element like :before { content: attr(data-attribute) } and get rid of the span. Those are some minor details, but important in my opinion. :)

Marked as helpful

0

Aadvik 1,250

@Aadv1k

Posted

@remyboire Thanks for your comprehensive review! So the colors, I just eyeballed some of the text colors using tailwindcss' builtin color pallete (slate and stone) so there is that, and as for the tool tip THANK YOU, I was wondering if there was a way to use pseudo classes here, I wasn't aware of the content: attr(). Although, I feel like using spans you have a bit more control (although I didn't implement it) for example making it so when you clikck, the span stays there and when you click it is removed (along side hover) but hey, I appreciate your input! Actually Let's connect on github, I'll drop you a follow ~ Aadvik

0

@remyboire

Posted

@Aadv1k You still can toggle a class in JS for the pseudo-element to stay, I don't think it would pose a problem! Sure let's connect on Github :)

1
Aadvik 1,250

@Aadv1k

Posted

Holy hell I just saw the 40 html mistakes, but most of them seem to be the doings of tailwind and webpack, so I don't think I can fix em

0
